Technical Data Sheet of D301G Anion Exchange Resin

D301GB  Technical Data Sheet

D301G（B) is a macroporous poly(vinylbenzyl) anion exchange resin, primarily designed for effective recovery of aurocyanide complexes obtained from the alkaline cyanide processing of gold ores. Thanks to properly tailored functionality the resin has superior selectivity for gold against the basic metals exiting in pregnant solution. This resin shows high resistance to osmotic and thermal shock and the mechanical attrition experienced in resin-in-pulp applications for the recovery of gold. Details of the chemical and physical characteristics are given below. The resin is supplied in bead form with a specially graded particle size required by Resin-in-Pulp gold recovery circuits. Desorption stage may include stripping of by-metals by alkaline cyanide, weak thiourea solution and sulfuric acid. Gold is stripped by mixture of sulfuric acid and thiourea. Obtained gold desorbate can be directed straight to electrolysis for gold and silver deposition.

BASIC FEATURES:
Application - Gold Recovery
Polymer Structure - Macroporous polystyrene crosslinked with divinylbenzene
Appearance - Spherical Beads
Functional Group - Tertiary Amine
Ionic Form as Shipped - Chloride Form
Particle Size: 0.8-1.8mm

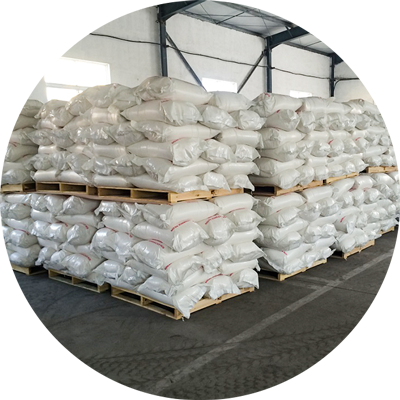

Packaging Form:
packaging bag, 25KGS/Bags.
